Spring容器概述
spring的整体架构如下，其中spring 容器作为spring 的底座，其他功能如web、data 等都是基于spring 容器发展起来，本文针对spring容器进行详细的分析。

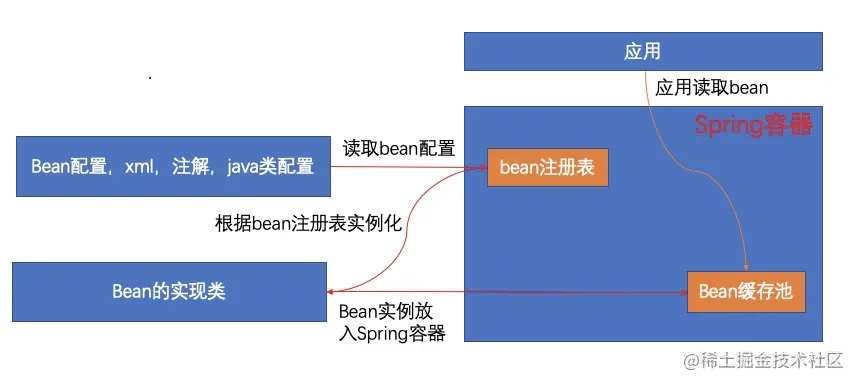

Spring 容器
Bean配置信息定义了Bean的实现及依赖关系，Spring容器根据各种形式的Bean配置信息在容器内部建立Bean定义注册表，然后根据注册表加载、实例化Bean，并建立Bean和Bean的依赖关系，最后将这些准备就绪的Bean放到Bean缓存池中，以供外层的应用程序进行调用。Spring容器包括beanFactory 和applicationContext,整个spring容器就是通过beanFactory和applicationContext来完成bean的配置、注册、实例化、初始化、读取等一些列操作。
applicationContext

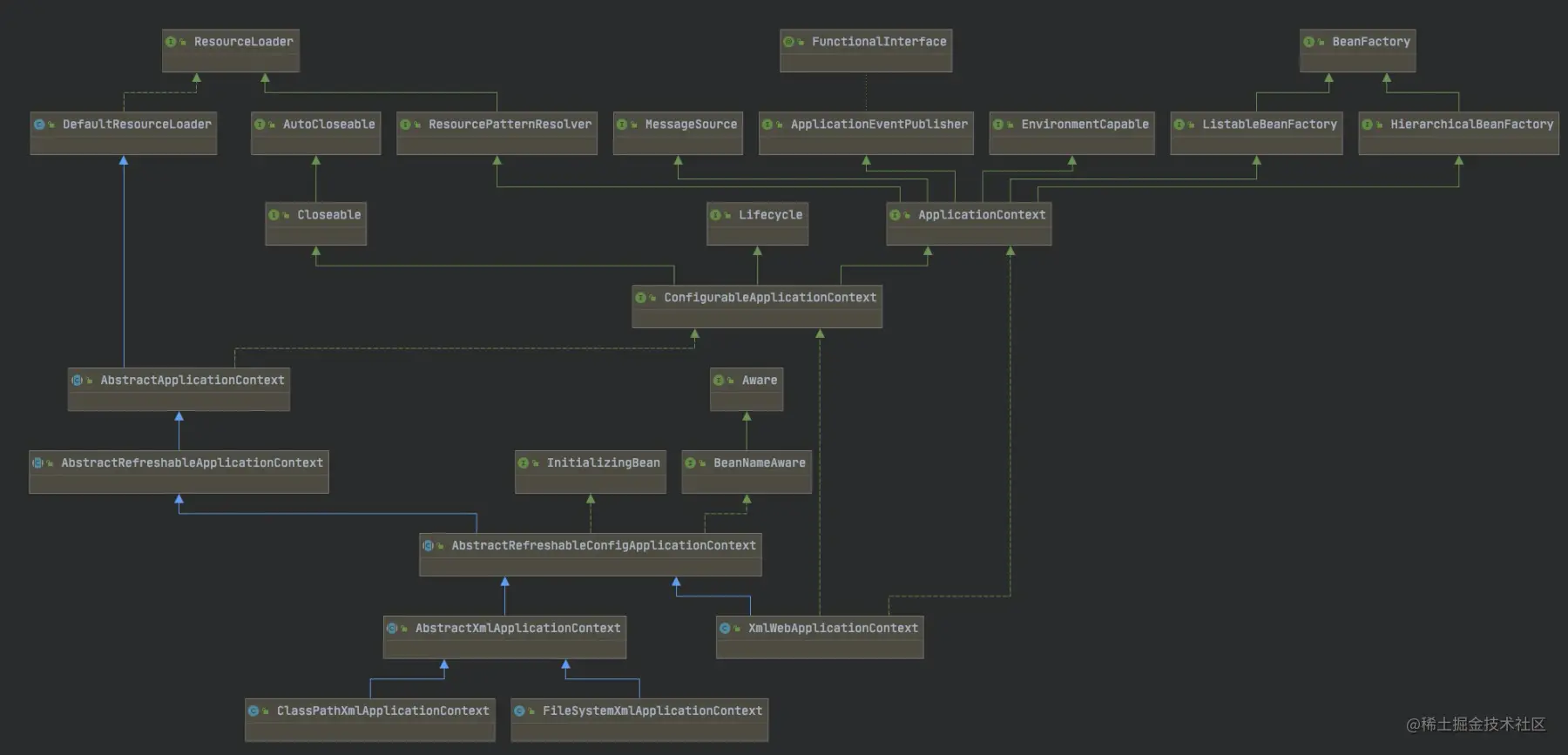

抽象类AbstractApplicationContext包含了容器的绝大部分功能，spring容器的启动流程就是在这个类的refresh方法中。下面的子类是应对不同的场景，我们在创建一个spring容器的时候通常会这样做。
//编译路径
ClassPathXmlApplicationContext context = new ClassPathXmlApplicationContext("applicationContext.xml");
//系统文件路径
FileSystemXmlApplicationContext context = new FileSystemXmlApplicationContext("applicationContext.xml");
//mvc启动方式
XmlWebApplicationContext context = new XmlWebApplicationContext("applicationContext.xml");
复制代码beanFactory

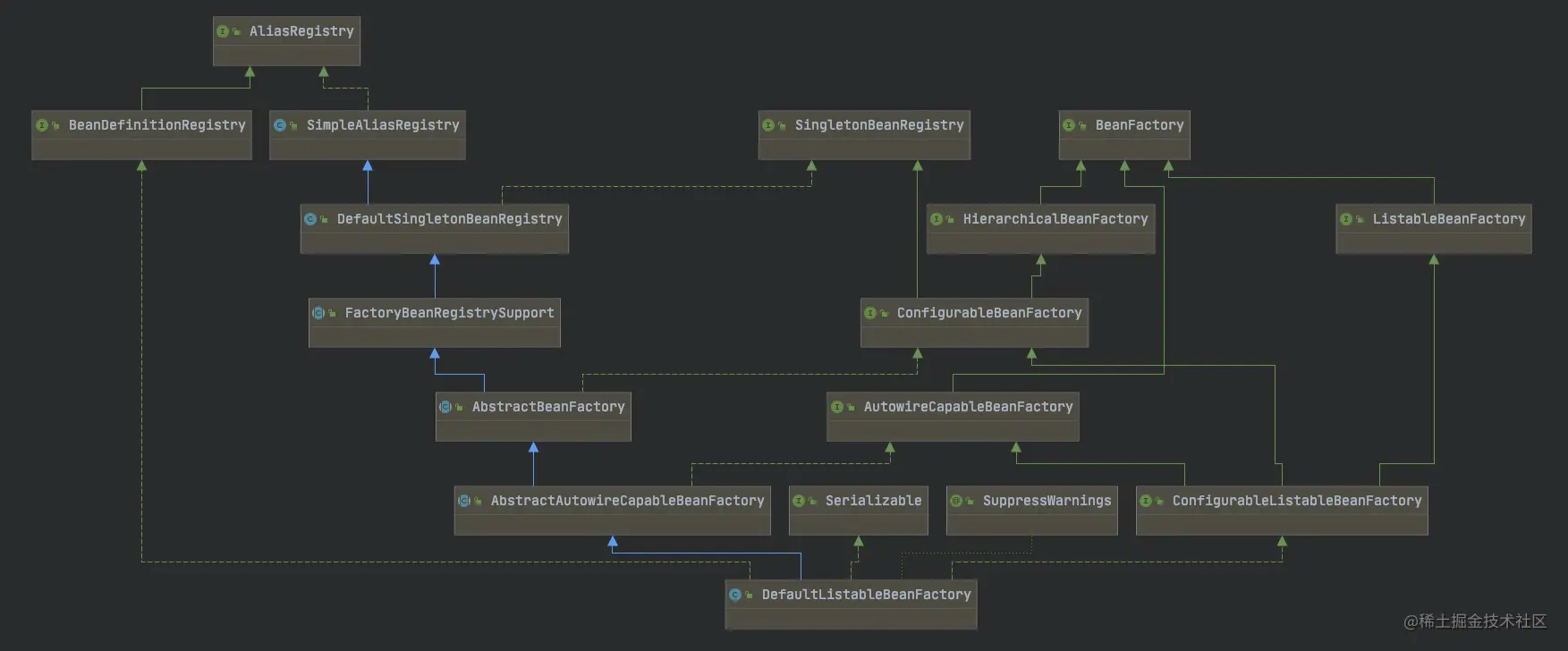

DefaulistListTableBeanFactory包含了beanFactory的核心能力，容器启动默认创建DefaulistListTableBeanFactory实例。Spring读取bean的配置创建的beanDefinition对象会存放在bean注册表中，根据beanDefinition对象创建的singleton类型的bean实例会存放在bean缓存池中，bean的注册表和bean的缓存池都由DefaulistListTableBeanFactory维护，由此可见DefaulistListTableBeanFactory在spring容器中的地位。
public class DefaultListableBeanFactory extends AbstractAutowireCapableBeanFactory
implements ConfigurableListableBeanFactory, BeanDefinitionRegistry, Serializable{}
复制代码初始化spring容器
tomcat启动后回调ContextLoaderListener启动spring容器
web容器如tomcat启动时，根据web.xml中的配置，回调监听器ContextLoaderListener ，ContextLoaderListener实现了tomcat的ServletContextListener 接口，通过contextInitialized方法完成webApplicationContext的初始化
<web-app xmlns="http://xmlns.jcp.org/xml/ns/javaee"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_4_0.xsd"
version="4.0">
<context-param>
<param-name>contextConfigLocation</param-name>
<param-value>/WEB-INF/applicationContext.xml</param-value>
</context-param>
<listener>
<listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
</listener>
<servlet>
<servlet-name>dispatcher</servlet-name>
<servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
<load-on-startup>1</load-on-startup>
</servlet>
<servlet-mapping>
<servlet-name>dispatcher</servlet-name>
<url-pattern>*.form</url-pattern>
</servlet-mapping>
</web-app>
复制代码初始化过程首先创建一个webApplicationContext，如果没有自定义webApplicationContext会使用默认的默认使用XmlWebApplicationContext，之后会判断XmlWebApplicationContext是否被刷新过，如果没有则调用configureAndRefreshWebApplicationContext刷新容器，获取配置文件的位置参数，一般资源文件配置在applicationContext.xml中，这也是webapplicationContext默认的配置文件，初始化资源，最后调用refresh方法，refreshspring容器启动的核心方法，也是spring容器开始启动的入口。容器启动完成后会把spring的webApplicationContext注入到tomcat的servletContext
//ContextLoaderListener.java
//初始化sping 容器
@Override
public void contextInitialized(ServletContextEvent event) {
initWebApplicationContext(event.getServletContext());
}
//ContextLoader.java
public WebApplicationContext initWebApplicationContext(ServletContext servletContext) {
...省略非关键代码
try {
//context为空，则创建一个，默认使用XmlWebApplicationContext
if (this.context == null) {
this.context = createWebApplicationContext(servletContext);
}
//激活context
if (this.context instanceof ConfigurableWebApplicationContext) {
ConfigurableWebApplicationContext cwac = (ConfigurableWebApplicationContext) this.context;
if (!cwac.isActive()) {
// The context has not yet been refreshed -> provide services such as
// setting the parent context, setting the application context id, etc
if (cwac.getParent() == null) {
// The context instance was injected without an explicit parent ->
// determine parent for root web application context, if any.
ApplicationContext parent = loadParentContext(servletContext);
cwac.setParent(parent);
}
//核心方法，下面分析
configureAndRefreshWebApplicationContext(cwac, servletContext);
}
}
//把spring WebApplicationContext 注入到tomcat 的servletContext中
servletContext.setAttribute(WebApplicationContext.ROOT_WEB_APPLICATION_CONTEXT_ATTRIBUTE, this.context);
return this.context;
}
}
//ContextLoader.java
protected void configureAndRefreshWebApplicationContext(ConfigurableWebApplicationContext wac, ServletContext sc) {
//设置servletContext
wac.setServletContext(sc);
String configLocationParam = sc.getInitParameter(CONFIG_LOCATION_PARAM);
//设置context配置位置，一般是applicationContext.xml
if (configLocationParam != null) {
wac.setConfigLocation(configLocationParam);
}
ConfigurableEnvironment env = wac.getEnvironment();
if (env instanceof ConfigurableWebEnvironment) {
//初始化资源
((ConfigurableWebEnvironment) env).initPropertySources(sc, null);
}
customizeContext(sc, wac);
//spring容器的核心方法，真正启动spring的入口
wac.refresh();
}
复制代码\
Spring容器启动过程
//org/springframework/context/support/AbstractApplicationContext.java
public void refresh() throws BeansException, IllegalStateException {
synchronized (this.startupShutdownMonitor) {
// 准备启动上下文
prepareRefresh();
// 创建DefaultListableBeanFactory，完成bean配置的读取、解析，核心方法，下面分析
ConfigurableListableBeanFactory beanFactory = obtainFreshBeanFactory();
// Prepare the bean factory for use in this context.
//设置beanFactory属性，包括classloader、BeanPostProcessor
//注册ApplicationContextAwareProcessor实例实现BeanPostProcessor完成扩展功能（扩展点一节分析）
prepareBeanFactory(beanFactory);
try {
// 调用默认的beanPostProcessor 如 ServletContextAwareProcessor
postProcessBeanFactory(beanFactory);
// Invoke factory processors registered as beans in the context.
//实例化注册的BeanFactoryPostProcessor bean
invokeBeanFactoryPostProcessors(beanFactory);
// Register bean processors that intercept bean creation.
//注册 beanPostProcessor 用来在bean的初始化前后实现扩展逻辑
registerBeanPostProcessors(beanFactory);
// Initialize message source for this context.
initMessageSource();
// Initialize event multicaster for this context.
initApplicationEventMulticaster();
// Initialize other special beans in specific context subclasses.
onRefresh();
// Check for listener beans and register them.
registerListeners();
// 实例化非懒加载单例bean，核心方法下面分析
finishBeanFactoryInitialization(beanFactory);
// Last step: publish corresponding event.
finishRefresh();
}
}
}
复制代码\
bean解析&注册
beanFactory负责管理bean的解析、注册、实例化等操作，所以在bean解析前需要先创建一个beanFactory。如果之前已经创建beanFactory，需要先销毁bean并关闭beanFactory。Spring容器会创建一个DefaultListableBeanFactory实例，这个类非常重要，里面维护了bean的注册表和bean的缓存池，bean的注册表用来存放根据配置解析出的beanDefinition对象；bean的缓存池存放beanDefinition对象实例化出来的bean实例，我们应用平时使用到的bean就是从bean缓存池中取出来的。本小节先介绍bean的解析与注册过程，spring根据配置（xml、注解、java类）解析后的bean会存放在注册表里面，根据注册表实例化bean会存放在缓存池里面。然后在customizeBeanFactory方法中完成一些个性化配置，之后会加载配置的bean到spring的bean注册表
//org/springframework/context/support/AbstractApplicationContext.java
protected ConfigurableListableBeanFactory obtainFreshBeanFactory() {
refreshBeanFactory();
return getBeanFactory();
}
//org/springframework/context/support/AbstractRefreshableApplicationContext.java
protected final void refreshBeanFactory() throws BeansException {
if (hasBeanFactory()) {
destroyBeans();
closeBeanFactory();
}
try {
DefaultListableBeanFactory beanFactory = createBeanFactory();
beanFactory.setSerializationId(getId());
customizeBeanFactory(beanFactory);
//完成bean的解析、注册到spring用起的bean注册表
loadBeanDefinitions(beanFactory);
synchronized (this.beanFactoryMonitor) {
this.beanFactory = beanFactory;
}
}
}
复制代码读取bean配置，转换成dom对象
首先创建XmlBeanDefinitionReader，完成环境配置与初始化等，核心是loadBeanDefinitions（beanDefinitionReader），它会从配置文件加载bean，首先获取配置文件的位置，然后从配置文件中解析出resource。其中一系列的重载方法目的是把配置文件从location到获取资源到最终解析成document对象，这个转换过程是location->resource->inputstream->inputsource->document。真正解析bean的时候是解析document里面的element元素。
@Override
protected void loadBeanDefinitions(DefaultListableBeanFactory beanFactory) throws BeansException, IOException {
// Create a new XmlBeanDefinitionReader for the given BeanFactory.
XmlBeanDefinitionReader beanDefinitionReader = new XmlBeanDefinitionReader(beanFactory);
// Configure the bean definition reader with this context's
// resource loading environment.
beanDefinitionReader.setEnvironment(getEnvironment());
beanDefinitionReader.setResourceLoader(this);
beanDefinitionReader.setEntityResolver(new ResourceEntityResolver(this));
// Allow a subclass to provide custom initialization of the reader,
// then proceed with actually loading the bean definitions.
initBeanDefinitionReader(beanDefinitionReader);
loadBeanDefinitions(beanDefinitionReader);
}
protected void loadBeanDefinitions(XmlBeanDefinitionReader reader) throws IOException {
String[] configLocations = getConfigLocations();
if (configLocations != null) {
for (String configLocation : configLocations) {
reader.loadBeanDefinitions(configLocation);
}
}
}
public int loadBeanDefinitions(String location) throws BeanDefinitionStoreException {
return loadBeanDefinitions(location, null);
}
public int loadBeanDefinitions(String location, @Nullable Set<Resource> actualResources) throws BeanDefinitionStoreException {
//省略非核心代码
ResourceLoader resourceLoader = getResourceLoader();
//如果是正则匹配
if (resourceLoader instanceof ResourcePatternResolver) {
// Resource pattern matching available.
try {
//从配置文件解析resource
Resource[] resources = ((ResourcePatternResolver) resourceLoader).getResources(location);
int count = loadBeanDefinitions(resources);
}
}
else {
// Can only load single resources by absolute URL.
//从配置文件解析resource
Resource resource = resourceLoader.getResource(location);
int count = loadBeanDefinitions(resource);
}
}
//对resource进行编码
public int loadBeanDefinitions(Resource resource) throws BeanDefinitionStoreException {
return loadBeanDefinitions(new EncodedResource(resource));
}
public int loadBeanDefinitions(EncodedResource encodedResource) throws BeanDefinitionStoreException {
//省略非核心代码
try {
//resource -> inputStream
InputStream inputStream = encodedResource.getResource().getInputStream();
try {
//inputStream->inputSource
InputSource inputSource = new InputSource(inputStream);
if (encodedResource.getEncoding() != null) {
inputSource.setEncoding(encodedResource.getEncoding());
}
return doLoadBeanDefinitions(inputSource, encodedResource.getResource());
}
}
}
protected int doLoadBeanDefinitions(InputSource inputSource, Resource resource)
throws BeanDefinitionStoreException {
try {
//inputsource -> document
Document doc = doLoadDocument(inputSource, resource);
int count = registerBeanDefinitions(doc, resource);
return count;
}
}
public int registerBeanDefinitions(Document doc, Resource resource) throws BeanDefinitionStoreException {
BeanDefinitionDocumentReader documentReader = createBeanDefinitionDocumentReader();
int countBefore = getRegistry().getBeanDefinitionCount();
documentReader.registerBeanDefinitions(doc, createReaderContext(resource));
return getRegistry().getBeanDefinitionCount() - countBefore;
}
public void registerBeanDefinitions(Document doc, XmlReaderContext readerContext) {
this.readerContext = readerContext;
doRegisterBeanDefinitions(doc.getDocumentElement());
}
protected void doRegisterBeanDefinitions(Element root) {
BeanDefinitionParserDelegate parent = this.delegate;
this.delegate = createDelegate(getReaderContext(), root, parent);
//bean 解析前处理
preProcessXml(root);
//真正的解析bean
parseBeanDefinitions(root, this.delegate);
//bean解析后处理
postProcessXml(root);
this.delegate = parent;
}
复制代码dom对象解析成beanDefinition对象
经过上面的步骤已经把xml文件转成dom 元素，然后对dom元素从root节点开始解析，包括解析默认节点（如bean）和自定义节点（如context节点），默认的节点包括 impot alias bean等，这里重点看下bean节点的解析processBeanDefinition(ele, delegate)。首先把elemetn解析成beanDefinition并然后封装到一个包装器（重点，真正进行bean解析的地方，下面单独分析）
//org/springframework/beans/factory/xml/DefaultBeanDefinitionDocumentReader.java
protected void parseBeanDefinitions(Element root, BeanDefinitionParserDelegate delegate) {
if (delegate.isDefaultNamespace(root)) {
NodeList nl = root.getChildNodes();
for (int i = 0; i < nl.getLength(); i++) {
Node node = nl.item(i);
if (node instanceof Element) {
Element ele = (Element) node;
if (delegate.isDefaultNamespace(ele)) {
parseDefaultElement(ele, delegate);
}
else {
delegate.parseCustomElement(ele);
}
}
}
}
else {
delegate.parseCustomElement(root);
}
}
private void parseDefaultElement(Element ele, BeanDefinitionParserDelegate delegate) {
if (delegate.nodeNameEquals(ele, IMPORT_ELEMENT)) {
importBeanDefinitionResource(ele);
}
else if (delegate.nodeNameEquals(ele, ALIAS_ELEMENT)) {
processAliasRegistration(ele);
}
else if (delegate.nodeNameEquals(ele, BEAN_ELEMENT)) {
processBeanDefinition(ele, delegate);
}
else if (delegate.nodeNameEquals(ele, NESTED_BEANS_ELEMENT)) {
// recurse
doRegisterBeanDefinitions(ele);
}
}
protected void processBeanDefinition(Element ele, BeanDefinitionParserDelegate delegate) {
//将element元素解析成对beanDefinition，然后封装一个包装器，bean解析核心方法
BeanDefinitionHolder bdHolder = delegate.parseBeanDefinitionElement(ele);
if (bdHolder != null) {
bdHolder = delegate.decorateBeanDefinitionIfRequired(ele, bdHolder);
try {
//注册bean
BeanDefinitionReaderUtils.registerBeanDefinition(bdHolder, getReaderContext().getRegistry());
}
// Send registration event.
//注册完成后发送事件，对应的监听器收到事件会处理
getReaderContext().fireComponentRegistered(new BeanComponentDefinition(bdHolder));
}
}

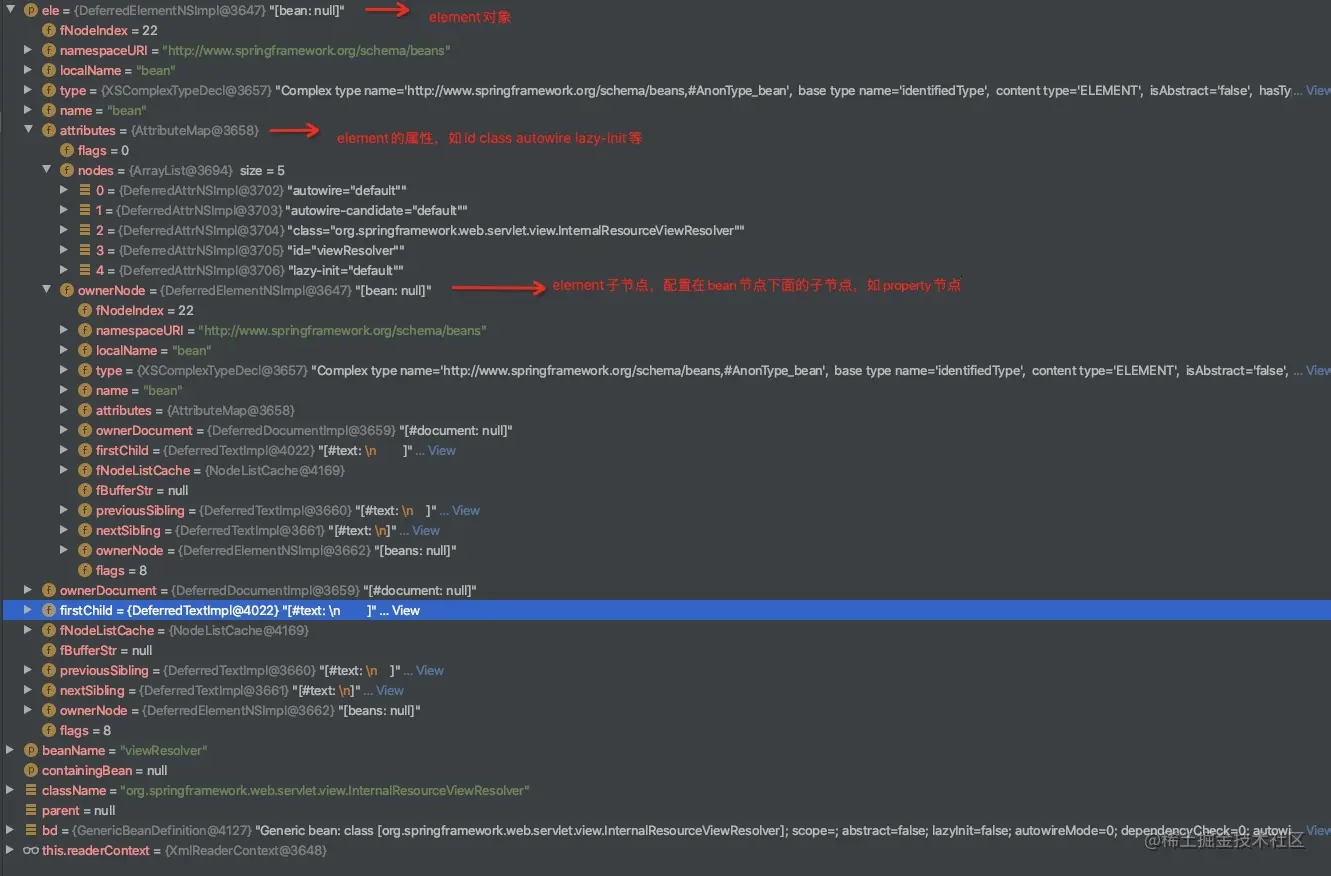

复制代码根据element里面的属性来解析bean，包括获取bean 的id 、name 校验id唯一性等准备工作，重点是通过parseBeanDefinitionElement把element解析成beanDefinition。parseBeanDefinitionElement首先是尝试获取element中bean 的classname 和parentName等属性，然后实例化一个GenericBeanDefinition并注入classname,parentName。最后是逐个解析bean的属性和bean的子节点属性并注入到之前实例化的GenericBeanDefinition中。下图中可以看出element对象包含了定义bean节点的各个属性和子节点的属性。
//BeanDefinitionParserDelegate.java
public BeanDefinitionHolder parseBeanDefinitionElement(Element ele) {
return parseBeanDefinitionElement(ele, null);
}
@Nullable
public BeanDefinitionHolder parseBeanDefinitionElement(Element ele, @Nullable BeanDefinition containingBean) {
//省略非核心代码
//获取beanId
String id = ele.getAttribute(ID_ATTRIBUTE);
//获取beanName
String nameAttr = ele.getAttribute(NAME_ATTRIBUTE);
//name支持多个
List<String> aliases = new ArrayList<>();
if (StringUtils.hasLength(nameAttr)) {
String[] nameArr = StringUtils.tokenizeToStringArray(nameAttr, MULTI_VALUE_ATTRIBUTE_DELIMITERS);
aliases.addAll(Arrays.asList(nameArr));
}
//如果id为空，则id取第一个name
String beanName = id;
if (!StringUtils.hasText(beanName) && !aliases.isEmpty()) {
beanName = aliases.remove(0);
if (logger.isTraceEnabled()) {
logger.trace("No XML 'id' specified - using '" + beanName +
"' as bean name and " + aliases + " as aliases");
}
}
//校验id的唯一性
if (containingBean == null) {
checkNameUniqueness(beanName, aliases, ele);
}
//beanName解析成beanDefinition 重点
AbstractBeanDefinition beanDefinition = parseBeanDefinitionElement(ele, beanName, containingBean);
return new BeanDefinitionHolder(beanDefinition, beanName, aliasesArray);
}
//这里是真正完成bean解析的过程
public AbstractBeanDefinition parseBeanDefinitionElement(
Element ele, String beanName, @Nullable BeanDefinition containingBean) {
this.parseState.push(new BeanEntry(beanName));
//获取classname和parent
String className = null;
if (ele.hasAttribute(CLASS_ATTRIBUTE)) {
className = ele.getAttribute(CLASS_ATTRIBUTE).trim();
}
String parent = null;
if (ele.hasAttribute(PARENT_ATTRIBUTE)) {
parent = ele.getAttribute(PARENT_ATTRIBUTE);
}
try {
创建GenerateBeanDefinition实例，注入classname
AbstractBeanDefinition bd = createBeanDefinition(className, parent);
//解析bean节点下的各个属性，如<init-method>
parseBeanDefinitionAttributes(ele, beanName, containingBean, bd);
bd.setDescription(DomUtils.getChildElementValueByTagName(ele, DESCRIPTION_ELEMENT));
//解析bean的子节点属性，如果配置了。比如metaElement constructor-args，property，qualifier等属性
parseMetaElements(ele, bd);
parseLookupOverrideSubElements(ele, bd.getMethodOverrides());
parseReplacedMethodSubElements(ele, bd.getMethodOverrides());
parseConstructorArgElements(ele, bd);
parsePropertyElements(ele, bd);
parseQualifierElements(ele, bd);
bd.setResource(this.readerContext.getResource());
bd.setSource(extractSource(ele));
return bd;
}
...省略异常
finally {
this.parseState.pop();
}
return null;
}
复制代码在xml文件中配置bean的时候可以设置各种各样的属性，如singleton lazy-init init-method等，里面会一一解析。
//BeanDefinitionParserDelegate.java
public AbstractBeanDefinition parseBeanDefinitionAttributes(Element ele, String beanName,
@Nullable BeanDefinition containingBean, AbstractBeanDefinition bd) {
if (ele.hasAttribute(SINGLETON_ATTRIBUTE)) {
error("Old 1.x 'singleton' attribute in use - upgrade to 'scope' declaration", ele);
}
else if (ele.hasAttribute(SCOPE_ATTRIBUTE)) {
bd.setScope(ele.getAttribute(SCOPE_ATTRIBUTE));
}
else if (containingBean != null) {
// Take default from containing bean in case of an inner bean definition.
bd.setScope(containingBean.getScope());
}
if (ele.hasAttribute(ABSTRACT_ATTRIBUTE)) {
bd.setAbstract(TRUE_VALUE.equals(ele.getAttribute(ABSTRACT_ATTRIBUTE)));
}
String lazyInit = ele.getAttribute(LAZY_INIT_ATTRIBUTE);
if (isDefaultValue(lazyInit)) {
lazyInit = this.defaults.getLazyInit();
}
bd.setLazyInit(TRUE_VALUE.equals(lazyInit));
String autowire = ele.getAttribute(AUTOWIRE_ATTRIBUTE);
bd.setAutowireMode(getAutowireMode(autowire));
if (ele.hasAttribute(DEPENDS_ON_ATTRIBUTE)) {
String dependsOn = ele.getAttribute(DEPENDS_ON_ATTRIBUTE);
bd.setDependsOn(StringUtils.tokenizeToStringArray(dependsOn, MULTI_VALUE_ATTRIBUTE_DELIMITERS));
}
String autowireCandidate = ele.getAttribute(AUTOWIRE_CANDIDATE_ATTRIBUTE);
if (isDefaultValue(autowireCandidate)) {
String candidatePattern = this.defaults.getAutowireCandidates();
if (candidatePattern != null) {
String[] patterns = StringUtils.commaDelimitedListToStringArray(candidatePattern);
bd.setAutowireCandidate(PatternMatchUtils.simpleMatch(patterns, beanName));
}
}
else {
bd.setAutowireCandidate(TRUE_VALUE.equals(autowireCandidate));
}
if (ele.hasAttribute(PRIMARY_ATTRIBUTE)) {
bd.setPrimary(TRUE_VALUE.equals(ele.getAttribute(PRIMARY_ATTRIBUTE)));
}
if (ele.hasAttribute(INIT_METHOD_ATTRIBUTE)) {
String initMethodName = ele.getAttribute(INIT_METHOD_ATTRIBUTE);
bd.setInitMethodName(initMethodName);
}
else if (this.defaults.getInitMethod() != null) {
bd.setInitMethodName(this.defaults.getInitMethod());
bd.setEnforceInitMethod(false);
}
if (ele.hasAttribute(DESTROY_METHOD_ATTRIBUTE)) {
String destroyMethodName = ele.getAttribute(DESTROY_METHOD_ATTRIBUTE);
bd.setDestroyMethodName(destroyMethodName);
}
else if (this.defaults.getDestroyMethod() != null) {
bd.setDestroyMethodName(this.defaults.getDestroyMethod());
bd.setEnforceDestroyMethod(false);
}
if (ele.hasAttribute(FACTORY_METHOD_ATTRIBUTE)) {
bd.setFactoryMethodName(ele.getAttribute(FACTORY_METHOD_ATTRIBUTE));
}
if (ele.hasAttribute(FACTORY_BEAN_ATTRIBUTE)) {
bd.setFactoryBeanName(ele.getAttribute(FACTORY_BEAN_ATTRIBUTE));
}
return bd;
}
复制代码beanDefinition对象注册到spring注册表
然后进行bean的注册，把beanName和beanDefinition放入注册表中，其实就是一个beanDefinitionMap，注册完成后发送事件，对应的监听器收到事件会处理。bean的注册包括beanDefinition的注册和别名的注册。bean注册的过程比较简单，就是把已经解析好的beanDefinition对象存放到注册表beanDefinitionmap中。
//BeanDefinitionReaderUtils.java
public static void registerBeanDefinition(
BeanDefinitionHolder definitionHolder, BeanDefinitionRegistry registry)
throws BeanDefinitionStoreException {
// Register bean definition under primary name.
String beanName = definitionHolder.getBeanName();
//用primary name 注册bean
registry.registerBeanDefinition(beanName, definitionHolder.getBeanDefinition());
// Register aliases for bean name, if any.
//注册别名
String[] aliases = definitionHolder.getAliases();
if (aliases != null) {
for (String alias : aliases) {
registry.registerAlias(beanName, alias);
}
}
}
//DefaultListableBeanFactory.java
public void registerBeanDefinition(String beanName, BeanDefinition beanDefinition)
throws BeanDefinitionStoreException {
//最关键的就是把beanDefinition存入beanDefinitionMap
this.beanDefinitionMap.put(beanName, beanDefinition);
this.beanDefinitionNames.add(beanName);
}
复制代码创建bean实例&初始化
refresh（）方法中会调用finishBeanFactoryInitialization进行bean的实例化，前面是设置conversion service和注册字符串解析器用来解析配置，设置LoadTimeWeaverAware，停止使用临时类加载器。核心方法是preInstantiateSingletons（），这一步是初始化所有的非lzay-init bean。
protected void finishBeanFactoryInitialization(ConfigurableListableBeanFactory beanFactory) {
// Initialize conversion service for this context.
if (beanFactory.containsBean(CONVERSION_SERVICE_BEAN_NAME) &&
beanFactory.isTypeMatch(CONVERSION_SERVICE_BEAN_NAME, ConversionService.class)) {
beanFactory.setConversionService(
beanFactory.getBean(CONVERSION_SERVICE_BEAN_NAME, ConversionService.class));
}
// Register a default embedded value resolver if no bean post-processor
// (such as a PropertyPlaceholderConfigurer bean) registered any before:
// at this point, primarily for resolution in annotation attribute values.
if (!beanFactory.hasEmbeddedValueResolver()) {
beanFactory.addEmbeddedValueResolver(strVal -> getEnvironment().resolvePlaceholders(strVal));
}
// Initialize LoadTimeWeaverAware beans early to allow for registering their transformers early.
String[] weaverAwareNames = beanFactory.getBeanNamesForType(LoadTimeWeaverAware.class, false, false);
for (String weaverAwareName : weaverAwareNames) {
getBean(weaverAwareName);
}
// Stop using the temporary ClassLoader for type matching.
beanFactory.setTempClassLoader(null);
// Allow for caching all bean definition metadata, not expecting further changes.
beanFactory.freezeConfiguration();
// Instantiate all remaining (non-lazy-init) singletons.
//初始化所有的非lazy-init bean
beanFactory.preInstantiateSingletons();
}
复制代码首先获取beanNames，遍历beanNames，对于每一个beanName，先判断是否是factoryBean 实现了factoryBean接口的bean属于factoryBean，获取factoryBean和通常的bean有些不同，需要在beanName前加上'&'前缀 ，例如getBean(&${beanName})，不过通常的bean都不属于factoryBean，我们直接看下面的getBean(beanName)方法。
//org/springframework/beans/factory/support/DefaultListableBeanFactory.java
public void preInstantiateSingletons() throws BeansException {
List<String> beanNames = new ArrayList<>(this.beanDefinitionNames);
// Trigger initialization of all non-lazy singleton beans...
for (String beanName : beanNames) {
RootBeanDefinition bd = getMergedLocalBeanDefinition(beanName);
if (!bd.isAbstract() && bd.isSingleton() && !bd.isLazyInit()) {
//判断是否factoryBean 实现了factoryBean接口的bean属于factoryBean，获取factoryBean需要在beanName加上'&'前缀
//通常的bean都直接走下面的getBean分支，不属于factoryBean
if (isFactoryBean(beanName)) {
Object bean = getBean(FACTORY_BEAN_PREFIX + beanName);
if (bean instanceof FactoryBean) {
final FactoryBean<?> factory = (FactoryBean<?>) bean;
boolean isEagerInit;
if (System.getSecurityManager() != null && factory instanceof SmartFactoryBean) {
isEagerInit = AccessController.doPrivileged((PrivilegedAction<Boolean>)
((SmartFactoryBean<?>) factory)::isEagerInit,
getAccessControlContext());
}
else {
isEagerInit = (factory instanceof SmartFactoryBean &&
((SmartFactoryBean<?>) factory).isEagerInit());
}
if (isEagerInit) {
getBean(beanName);
}
}
}
else {
//获取bean，重点
getBean(beanName);
}
}
}
// Trigger post-initialization callback for all applicable beans...
for (String beanName : beanNames) {
Object singletonInstance = getSingleton(beanName);
if (singletonInstance instanceof SmartInitializingSingleton) {
final SmartInitializingSingleton smartSingleton = (SmartInitializingSingleton) singletonInstance;
if (System.getSecurityManager() != null) {
AccessController.doPrivileged((PrivilegedAction<Object>) () -> {
smartSingleton.afterSingletonsInstantiated();
return null;
}, getAccessControlContext());
}
else {
smartSingleton.afterSingletonsInstantiated();
}
}
}
}
复制代码首先转换beanName，factoryBean 需要去掉前面的&。然后根据beanName判断bean是否已经被创建，如果创建则直接从内存中返回bean实例。如果没有创建，看是否正在创建bean，是的话抛异常。不是的话则进入bean的创建流程。判断beanFactory是否包含这个beanName所属的beanDefinition，如果不在看是否在parentBeanFactory中，之后合并parent节点，组装完整的beanDefinition。bean在实例化前需要先实例化依赖的bean，这里会涉及到bean 的循环依赖问题。依赖的bean实例化后，完成自己bean的实例化，不同scope的bean实例化的处理方式稍微不同，这里只看单例 bean的实例化createBean(beanName, mbd, args);
public Object getBean(String name) throws BeansException {
return doGetBean(name, null, null, false);
}
复制代码protected <T> T doGetBean(final String name, @Nullable final Class<T> requiredType,
@Nullable final Object[] args, boolean typeCheckOnly) throws BeansException {
final String beanName = transformedBeanName(name);
Object bean;
// Eagerly check singleton cache for manually registered singletons.
//判断bean是否已被创建
Object sharedInstance = getSingleton(beanName);
if (sharedInstance != null && args == null) {
if (logger.isTraceEnabled()) {
if (isSingletonCurrentlyInCreation(beanName)) {
logger.trace("Returning eagerly cached instance of singleton bean '" + beanName +
"' that is not fully initialized yet - a consequence of a circular reference");
}
else {
logger.trace("Returning cached instance of singleton bean '" + beanName + "'");
}
}
bean = getObjectForBeanInstance(sharedInstance, name, beanName, null);
}
else {
//正在创建实例则抛出异常
if (isPrototypeCurrentlyInCreation(beanName)) {
throw new BeanCurrentlyInCreationException(beanName);
}
// 判断beanDefinition是否在beanFactory中，如果不在看是否在parentBeanFactory
BeanFactory parentBeanFactory = getParentBeanFactory();
if (parentBeanFactory != null && !containsBeanDefinition(beanName)) {
// Not found -> check parent.
String nameToLookup = originalBeanName(name);
if (parentBeanFactory instanceof AbstractBeanFactory) {
return ((AbstractBeanFactory) parentBeanFactory).doGetBean(
nameToLookup, requiredType, args, typeCheckOnly);
}
else if (args != null) {
// Delegation to parent with explicit args.
return (T) parentBeanFactory.getBean(nameToLookup, args);
}
else if (requiredType != null) {
// No args -> delegate to standard getBean method.
return parentBeanFactory.getBean(nameToLookup, requiredType);
}
else {
return (T) parentBeanFactory.getBean(nameToLookup);
}
}
if (!typeCheckOnly) {
markBeanAsCreated(beanName);
}
try {
//合并parent节点，组装beanDefinition
final RootBeanDefinition mbd = getMergedLocalBeanDefinition(beanName);
checkMergedBeanDefinition(mbd, beanName, args);
// 需要先保障依赖的bean初始化
String[] dependsOn = mbd.getDependsOn();
if (dependsOn != null) {
for (String dep : dependsOn) {
if (isDependent(beanName, dep)) {
throw new BeanCreationException(mbd.getResourceDescription(), beanName,
"Circular depends-on relationship between '" + beanName + "' and '" + dep + "'");
}
registerDependentBean(dep, beanName);
try {
getBean(dep);
}
catch (NoSuchBeanDefinitionException ex) {
throw new BeanCreationException(mbd.getResourceDescription(), beanName,
"'" + beanName + "' depends on missing bean '" + dep + "'", ex);
}
}
}
// Create bean instance.
if (mbd.isSingleton()) {
sharedInstance = getSingleton(beanName, () -> {
try {
//创建bean实例，重点
return createBean(beanName, mbd, args);
}
catch (BeansException ex) {
// Explicitly remove instance from singleton cache: It might have been put there
// eagerly by the creation process, to allow for circular reference resolution.
// Also remove any beans that received a temporary reference to the bean.
destroySingleton(beanName);
throw ex;
}
});
bean = getObjectForBeanInstance(sharedInstance, name, beanName, mbd);
}
else if (mbd.isPrototype()) {
// It's a prototype -> create a new instance.
Object prototypeInstance = null;
try {
beforePrototypeCreation(beanName);
prototypeInstance = createBean(beanName, mbd, args);
}
finally {
afterPrototypeCreation(beanName);
}
bean = getObjectForBeanInstance(prototypeInstance, name, beanName, mbd);
}
else {
String scopeName = mbd.getScope();
final Scope scope = this.scopes.get(scopeName);
if (scope == null) {
throw new IllegalStateException("No Scope registered for scope name '" + scopeName + "'");
}
try {
Object scopedInstance = scope.get(beanName, () -> {
beforePrototypeCreation(beanName);
try {
return createBean(beanName, mbd, args);
}
finally {
afterPrototypeCreation(beanName);
}
});
bean = getObjectForBeanInstance(scopedInstance, name, beanName, mbd);
}
catch (IllegalStateException ex) {
throw new BeanCreationException(beanName,
"Scope '" + scopeName + "' is not active for the current thread; consider " +
"defining a scoped proxy for this bean if you intend to refer to it from a singleton",
ex);
}
}
}
catch (BeansException ex) {
cleanupAfterBeanCreationFailure(beanName);
throw ex;
}
}
// Check if required type matches the type of the actual bean instance.
if (requiredType != null && !requiredType.isInstance(bean)) {
try {
T convertedBean = getTypeConverter().convertIfNecessary(bean, requiredType);
if (convertedBean == null) {
throw new BeanNotOfRequiredTypeException(name, requiredType, bean.getClass());
}
return convertedBean;
}
catch (TypeMismatchException ex) {
if (logger.isTraceEnabled()) {
logger.trace("Failed to convert bean '" + name + "' to required type '" +
ClassUtils.getQualifiedName(requiredType) + "'", ex);
}
throw new BeanNotOfRequiredTypeException(name, requiredType, bean.getClass());
}
}
return (T) bean;
}
复制代码创建bean实例
确保此时bean class 已经被解析了，拷贝一个beanDefinition以防动态解析的bean class 不能被存储在一个共享的merged bean definition中，然后在拷贝的beanDefinition 设置beanClass。beanPostProcessor可以干预bean的初始化，此处通过resolveBeforeInstantiation可以在bean实例化前返回一个bean实例的代理，如果没有则进行下面的bean实例创建doCreateBean(beanName, mbdToUse, args);
org/springframework/beans/factory/support/AbstractAutowireCapableBeanFactory.java
protected Object createBean(String beanName, RootBeanDefinition mbd, @Nullable Object[] args)
throws BeanCreationException {
if (logger.isTraceEnabled()) {
logger.trace("Creating instance of bean '" + beanName + "'");
}
RootBeanDefinition mbdToUse = mbd;
//clone 一个beanDefinition
Class<?> resolvedClass = resolveBeanClass(mbd, beanName);
if (resolvedClass != null && !mbd.hasBeanClass() && mbd.getBeanClassName() != null) {
mbdToUse = new RootBeanDefinition(mbd);
mbdToUse.setBeanClass(resolvedClass);
}
// Prepare method overrides.
try {
mbdToUse.prepareMethodOverrides();
}
catch (BeanDefinitionValidationException ex) {
throw new BeanDefinitionStoreException(mbdToUse.getResourceDescription(),
beanName, "Validation of method overrides failed", ex);
}
try {
// 在bean初始化前的beanPostProcessor处理，它可以返回一个bean实例的代理
Object bean = resolveBeforeInstantiation(beanName, mbdToUse);
if (bean != null) {
return bean;
}
}
catch (Throwable ex) {
throw new BeanCreationException(mbdToUse.getResourceDescription(), beanName,
"BeanPostProcessor before instantiation of bean failed", ex);
}
try {
//创建bean实例
Object beanInstance = doCreateBean(beanName, mbdToUse, args);
if (logger.isTraceEnabled()) {
logger.trace("Finished creating instance of bean '" + beanName + "'");
}
return beanInstance;
}
...省略异常处理
}
复制代码doCreateBean是真正创建bean实例的地方，首先从缓存中获取bean实例，获取不到则通过反射创建一个bean实例。mergedBeanDefinitionProcessor可以通过回调postProcessMergedBeanDefinition修改merged bean definition。之后进行bean的初始化，最后注册bean为可销毁的。这里重点看下bean的实例创建
protected Object doCreateBean(final String beanName, final RootBeanDefinition mbd, final @Nullable Object[] args)
throws BeanCreationException {
// 先从缓存中获取
BeanWrapper instanceWrapper = null;
if (mbd.isSingleton()) {
instanceWrapper = this.factoryBeanInstanceCache.remove(beanName);
}
//真正创建bean实例，通过反射创建
if (instanceWrapper == null) {
instanceWrapper = createBeanInstance(beanName, mbd, args);
}
final Object bean = instanceWrapper.getWrappedInstance();
Class<?> beanType = instanceWrapper.getWrappedClass();
if (beanType != NullBean.class) {
mbd.resolvedTargetType = beanType;
}
// Allow post-processors to modify the merged bean definition.
//mergedBeanDefinitionProcessor可以修改merged bean definition.
synchronized (mbd.postProcessingLock) {
if (!mbd.postProcessed) {
try {
applyMergedBeanDefinitionPostProcessors(mbd, beanType, beanName);
}
catch (Throwable ex) {
throw new BeanCreationException(mbd.getResourceDescription(), beanName,
"Post-processing of merged bean definition failed", ex);
}
mbd.postProcessed = true;
}
}
// Eagerly cache singletons to be able to resolve circular references
// even when triggered by lifecycle interfaces like BeanFactoryAware.
boolean earlySingletonExposure = (mbd.isSingleton() && this.allowCircularReferences &&
isSingletonCurrentlyInCreation(beanName));
if (earlySingletonExposure) {
if (logger.isTraceEnabled()) {
logger.trace("Eagerly caching bean '" + beanName +
"' to allow for resolving potential circular references");
}
addSingletonFactory(beanName, () -> getEarlyBeanReference(beanName, mbd, bean));
}
// Initialize the bean instance.
Object exposedObject = bean;
try {
populateBean(beanName, mbd, instanceWrapper);
//初始化bean实例，后面重点分析
exposedObject = initializeBean(beanName, exposedObject, mbd);
}
catch (Throwable ex) {
if (ex instanceof BeanCreationException && beanName.equals(((BeanCreationException) ex).getBeanName())) {
throw (BeanCreationException) ex;
}
else {
throw new BeanCreationException(
mbd.getResourceDescription(), beanName, "Initialization of bean failed", ex);
}
}
if (earlySingletonExposure) {
Object earlySingletonReference = getSingleton(beanName, false);
if (earlySingletonReference != null) {
if (exposedObject == bean) {
exposedObject = earlySingletonReference;
}
else if (!this.allowRawInjectionDespiteWrapping && hasDependentBean(beanName)) {
String[] dependentBeans = getDependentBeans(beanName);
Set<String> actualDependentBeans = new LinkedHashSet<>(dependentBeans.length);
for (String dependentBean : dependentBeans) {
if (!removeSingletonIfCreatedForTypeCheckOnly(dependentBean)) {
actualDependentBeans.add(dependentBean);
}
}
if (!actualDependentBeans.isEmpty()) {
throw new BeanCurrentlyInCreationException(beanName,
"Bean with name '" + beanName + "' has been injected into other beans [" +
StringUtils.collectionToCommaDelimitedString(actualDependentBeans) +
"] in its raw version as part of a circular reference, but has eventually been " +
"wrapped. This means that said other beans do not use the final version of the " +
"bean. This is often the result of over-eager type matching - consider using " +
"'getBeanNamesOfType' with the 'allowEagerInit' flag turned off, for example.");
}
}
}
}
// Register bean as disposable.
try {
registerDisposableBeanIfNecessary(beanName, bean, mbd);
}
catch (BeanDefinitionValidationException ex) {
throw new BeanCreationException(
mbd.getResourceDescription(), beanName, "Invalid destruction signature", ex);
}
return exposedObject;
}
复制代码首先确保bean class 已经被解析，这样才能实例化对应的对象。实例化bean有多种策略，根据配置选择合适的方法进行实例化
- 工厂方法初始化
- 构造函数自动注入初始化
- 默认无参构造方法初始化
protected BeanWrapper createBeanInstance(String beanName, RootBeanDefinition mbd, @Nullable Object[] args) {
// Make sure bean class is actually resolved at this point.
Class<?> beanClass = resolveBeanClass(mbd, beanName);
if (beanClass != null && !Modifier.isPublic(beanClass.getModifiers()) && !mbd.isNonPublicAccessAllowed()) {
throw new BeanCreationException(mbd.getResourceDescription(), beanName,
"Bean class isn't public, and non-public access not allowed: " + beanClass.getName());
}
Supplier<?> instanceSupplier = mbd.getInstanceSupplier();
if (instanceSupplier != null) {
return obtainFromSupplier(instanceSupplier, beanName);
}
if (mbd.getFactoryMethodName() != null) {
return instantiateUsingFactoryMethod(beanName, mbd, args);
}
// Shortcut when re-creating the same bean...
boolean resolved = false;
boolean autowireNecessary = false;
if (args == null) {
synchronized (mbd.constructorArgumentLock) {
if (mbd.resolvedConstructorOrFactoryMethod != null) {
resolved = true;
autowireNecessary = mbd.constructorArgumentsResolved;
}
}
}
if (resolved) {
if (autowireNecessary) {
return autowireConstructor(beanName, mbd, null, null);
}
else {
return instantiateBean(beanName, mbd);
}
}
// Candidate constructors for autowiring?
Constructor<?>[] ctors = determineConstructorsFromBeanPostProcessors(beanClass, beanName);
if (ctors != null || mbd.getResolvedAutowireMode() == AUTOWIRE_CONSTRUCTOR ||
mbd.hasConstructorArgumentValues() || !ObjectUtils.isEmpty(args)) {
return autowireConstructor(beanName, mbd, ctors, args);
}
// Preferred constructors for default construction?
ctors = mbd.getPreferredConstructors();
if (ctors != null) {
return autowireConstructor(beanName, mbd, ctors, null);
}
// No special handling: simply use no-arg constructor.
return instantiateBean(beanName, mbd);
}
复制代码这里选取最简单的默认无参构造方法来分析，主要看instantiate(mbd, beanName, parent)
protected BeanWrapper instantiateBean(final String beanName, final RootBeanDefinition mbd) {
try {
Object beanInstance;
final BeanFactory parent = this;
if (System.getSecurityManager() != null) {
beanInstance = AccessController.doPrivileged((PrivilegedAction<Object>) () ->
getInstantiationStrategy().instantiate(mbd, beanName, parent),
getAccessControlContext());
}
else {
beanInstance = getInstantiationStrategy().instantiate(mbd, beanName, parent);
}
BeanWrapper bw = new BeanWrapperImpl(beanInstance);
initBeanWrapper(bw);
return bw;
}
catch (Throwable ex) {
throw new BeanCreationException(
mbd.getResourceDescription(), beanName, "Instantiation of bean failed", ex);
}
}
复制代码获取bean class 对象 判断是否是接口，如果是接口抛异常。然后通过反射获取构造方法，最后通过instantiateClass(constructorToUse)方法中的ctor.newInstance(args)完成构造函数的newInstance（），至此bean实例化过程完成。
public Object instantiate(RootBeanDefinition bd, @Nullable String beanName, BeanFactory owner) {
// Don't override the class with CGLIB if no overrides.
if (!bd.hasMethodOverrides()) {
Constructor<?> constructorToUse;
synchronized (bd.constructorArgumentLock) {
constructorToUse = (Constructor<?>) bd.resolvedConstructorOrFactoryMethod;
if (constructorToUse == null) {
final Class<?> clazz = bd.getBeanClass();
if (clazz.isInterface()) {
throw new BeanInstantiationException(clazz, "Specified class is an interface");
}
try {
if (System.getSecurityManager() != null) {
constructorToUse = AccessController.doPrivileged(
(PrivilegedExceptionAction<Constructor<?>>) clazz::getDeclaredConstructor);
}
else {
constructorToUse = clazz.getDeclaredConstructor();
}
bd.resolvedConstructorOrFactoryMethod = constructorToUse;
}
catch (Throwable ex) {
throw new BeanInstantiationException(clazz, "No default constructor found", ex);
}
}
}
return BeanUtils.instantiateClass(constructorToUse);
}
else {
// Must generate CGLIB subclass.
return instantiateWithMethodInjection(bd, beanName, owner);
}
}
public static <T> T instantiateClass(Constructor<T> ctor, Object... args) throws BeanInstantiationException {
Assert.notNull(ctor, "Constructor must not be null");
try {
ReflectionUtils.makeAccessible(ctor);
//最终实例化的完成
return ctor.newInstance(args);
}
catch (InstantiationException ex) {
throw new BeanInstantiationException(ctor, "Is it an abstract class?", ex);
}
catch (IllegalAccessException ex) {
throw new BeanInstantiationException(ctor, "Is the constructor accessible?", ex);
}
catch (IllegalArgumentException ex) {
throw new BeanInstantiationException(ctor, "Illegal arguments for constructor", ex);
}
catch (InvocationTargetException ex) {
throw new BeanInstantiationException(ctor, "Constructor threw exception", ex.getTargetException());
}
}
复制代码\
bean的初始化
主要是回调一系列 Aware方法、initMethod方法和 bean post processors对bean初始化进行前处理和后处理。
protected Object initializeBean(final String beanName, final Object bean, @Nullable RootBeanDefinition mbd) {
if (System.getSecurityManager() != null) {
AccessController.doPrivileged((PrivilegedAction<Object>) () -> {
invokeAwareMethods(beanName, bean);
return null;
}, getAccessControlContext());
}
else {
invokeAwareMethods(beanName, bean);
}
Object wrappedBean = bean;
if (mbd == null || !mbd.isSynthetic()) {
wrappedBean = applyBeanPostProcessorsBeforeInitialization(wrappedBean, beanName);
}
try {
invokeInitMethods(beanName, wrappedBean, mbd);
}
catch (Throwable ex) {
throw new BeanCreationException(
(mbd != null ? mbd.getResourceDescription() : null),
beanName, "Invocation of init method failed", ex);
}
if (mbd == null || !mbd.isSynthetic()) {
wrappedBean = applyBeanPostProcessorsAfterInitialization(wrappedBean, beanName);
}
return wrappedBean;
}
复制代码扩展点
BeanPostProcessor
beanPostProcessor是spring为修改bean提供的扩展点,postProcessBeforeInitialization在bean实例化后，初始化前调用，postProcessAfterInitialization在bean初始化后调用。
public interface BeanPostProcessor {
@Nullable
default Object postProcessBeforeInitialization(Object bean, String beanName) throws BeansException {
return bean;
}
@Nullable
default Object postProcessAfterInitialization(Object bean, String beanName) throws BeansException {
return bean;
}
}
复制代码在spring容器的启动入口refresh()方法中完成beanFactory的实例创建后会调用prepareBeanFactory，prepareBeanFactory主要是设置factoryBean的属性，beanFactory.addBeanPostProcessor(new ApplicationContextAwareProcessor(this))这行代码会创建ApplicationContextAwareProcesso实例并注册到beanFactory。
protected void prepareBeanFactory(ConfigurableListableBeanFactory beanFactory) {
// Tell the internal bean factory to use the context's class loader etc.
beanFactory.setBeanClassLoader(getClassLoader());
beanFactory.setBeanExpressionResolver(new StandardBeanExpressionResolver(beanFactory.getBeanClassLoader()));
beanFactory.addPropertyEditorRegistrar(new ResourceEditorRegistrar(this, getEnvironment()));
// Configure the bean factory with context callbacks.
beanFactory.addBeanPostProcessor(new ApplicationContextAwareProcessor(this));
beanFactory.ignoreDependencyInterface(EnvironmentAware.class);
beanFactory.ignoreDependencyInterface(EmbeddedValueResolverAware.class);
beanFactory.ignoreDependencyInterface(ResourceLoaderAware.class);
beanFactory.ignoreDependencyInterface(ApplicationEventPublisherAware.class);
beanFactory.ignoreDependencyInterface(MessageSourceAware.class);
beanFactory.ignoreDependencyInterface(ApplicationContextAware.class);
// BeanFactory interface not registered as resolvable type in a plain factory.
// MessageSource registered (and found for autowiring) as a bean.
beanFactory.registerResolvableDependency(BeanFactory.class, beanFactory);
beanFactory.registerResolvableDependency(ResourceLoader.class, this);
beanFactory.registerResolvableDependency(ApplicationEventPublisher.class, this);
beanFactory.registerResolvableDependency(ApplicationContext.class, this);
// Register early post-processor for detecting inner beans as ApplicationListeners.
beanFactory.addBeanPostProcessor(new ApplicationListenerDetector(this));
// Detect a LoadTimeWeaver and prepare for weaving, if found.
if (beanFactory.containsBean(LOAD_TIME_WEAVER_BEAN_NAME)) {
beanFactory.addBeanPostProcessor(new LoadTimeWeaverAwareProcessor(beanFactory));
// Set a temporary ClassLoader for type matching.
beanFactory.setTempClassLoader(new ContextTypeMatchClassLoader(beanFactory.getBeanClassLoader()));
}
// Register default environment beans.
if (!beanFactory.containsLocalBean(ENVIRONMENT_BEAN_NAME)) {
beanFactory.registerSingleton(ENVIRONMENT_BEAN_NAME, getEnvironment());
}
if (!beanFactory.containsLocalBean(SYSTEM_PROPERTIES_BEAN_NAME)) {
beanFactory.registerSingleton(SYSTEM_PROPERTIES_BEAN_NAME, getEnvironment().getSystemProperties());
}
if (!beanFactory.containsLocalBean(SYSTEM_ENVIRONMENT_BEAN_NAME)) {
beanFactory.registerSingleton(SYSTEM_ENVIRONMENT_BEAN_NAME, getEnvironment().getSystemEnvironment());
}
}
复制代码ApplicationContextAwareProcessor实现了BeanPostProcessor重写postProcessBeforeInitialization，里面调用了invokeAwareInterfaces（bean）方法，这里通过回调把spring资源注入到bean。
class ApplicationContextAwareProcessor implements BeanPostProcessor {
private final ConfigurableApplicationContext applicationContext;
private final StringValueResolver embeddedValueResolver;
/**
* Create a new ApplicationContextAwareProcessor for the given context.
*/
public ApplicationContextAwareProcessor(ConfigurableApplicationContext applicationContext) {
this.applicationContext = applicationContext;
this.embeddedValueResolver = new EmbeddedValueResolver(applicationContext.getBeanFactory());
}
@Override
@Nullable
public Object postProcessBeforeInitialization(Object bean, String beanName) throws BeansException {
if (!(bean instanceof EnvironmentAware || bean instanceof EmbeddedValueResolverAware ||
bean instanceof ResourceLoaderAware || bean instanceof ApplicationEventPublisherAware ||
bean instanceof MessageSourceAware || bean instanceof ApplicationContextAware)){
return bean;
}
AccessControlContext acc = null;
if (System.getSecurityManager() != null) {
acc = this.applicationContext.getBeanFactory().getAccessControlContext();
}
if (acc != null) {
AccessController.doPrivileged((PrivilegedAction<Object>) () -> {
invokeAwareInterfaces(bean);
return null;
}, acc);
}
else {
invokeAwareInterfaces(bean);
}
return bean;
}
private void invokeAwareInterfaces(Object bean) {
if (bean instanceof EnvironmentAware) {
((EnvironmentAware) bean).setEnvironment(this.applicationContext.getEnvironment());
}
if (bean instanceof EmbeddedValueResolverAware) {
((EmbeddedValueResolverAware) bean).setEmbeddedValueResolver(this.embeddedValueResolver);
}
if (bean instanceof ResourceLoaderAware) {
((ResourceLoaderAware) bean).setResourceLoader(this.applicationContext);
}
if (bean instanceof ApplicationEventPublisherAware) {
((ApplicationEventPublisherAware) bean).setApplicationEventPublisher(this.applicationContext);
}
if (bean instanceof MessageSourceAware) {
((MessageSourceAware) bean).setMessageSource(this.applicationContext);
}
if (bean instanceof ApplicationContextAware) {
((ApplicationContextAware) bean).setApplicationContext(this.applicationContext);
}
}
}
复制代码BeanFactoryPostProcessor
BeanFactoryPostProcessor只有postProcessBeanFactory一个接口,postProcessBeanFactory可以在BeanFactory完成实例化后修改容器内部的BeanFactory。在spring容器的启动入口refresh()方法中完成beanFactory的实例创建后会调用，这时候所有的bean都被加载，但是没有bean被初始化。这就允许BeanFactoryPostProcessor重写或者添加配置，甚至可以提前初始化bean。
\
public interface BeanFactoryPostProcessor {
/**
* Modify the application context's internal bean factory after its standard
* initialization. All bean definitions will have been loaded, but no beans
* will have been instantiated yet. This allows for overriding or adding
* properties even to eager-initializing beans.
* @param beanFactory the bean factory used by the application context
* @throws org.springframework.beans.BeansException in case of errors
*/
void postProcessBeanFactory(ConfigurableListableBeanFactory beanFactory) throws BeansException;
}
public void refresh(){
// 创建DefaultListableBeanFactory，完成bean配置的读取、解析，核心方法，下面分析
ConfigurableListableBeanFactory beanFactory = obtainFreshBeanFactory();
// Allows post-processing of the bean factory in context subclasses.
postProcessBeanFactory(beanFactory);
// Invoke factory processors registered as beans in the context.
invokeBeanFactoryPostProcessors(beanFactory);
}
复制代码xxxAware接口
若 Spring 检测到 bean 实现了 Aware 接口，则会为其注入相应的依赖。所以通过让bean 实现 Aware 接口，则能在 bean 中获得相应的 Spring 容器资源。
Spring 中对beanFactory容器提供的 Aware 接口有：
- BeanNameAware：注入当前 bean 对应 beanName；
- BeanClassLoaderAware：注入加载当前 bean 的 ClassLoader；
- BeanFactoryAware：注入 当前BeanFactory容器 的引用。
//org/springframework/context/support/ApplicationContextAwareProcessor.java
private void invokeAwareMethods(final String beanName, final Object bean) {
if (bean instanceof Aware) {
if (bean instanceof BeanNameAware) {
((BeanNameAware) bean).setBeanName(beanName);
}
if (bean instanceof BeanClassLoaderAware) {
ClassLoader bcl = getBeanClassLoader();
if (bcl != null) {
((BeanClassLoaderAware) bean).setBeanClassLoader(bcl);
}
}
if (bean instanceof BeanFactoryAware) {
((BeanFactoryAware) bean).setBeanFactory(AbstractAutowireCapableBeanFactory.this);
}
}
}
复制代码Spring对ApplicationContext类型容器也提供了Aware接口，这些 Aware 接口的注入实现，是通过 BeanPostProcessor 的方式注入的，具体过程在beanPostProcessor中已经分析
- EnvironmentAware：注入 Enviroment，一般用于获取配置属性；
- EmbeddedValueResolverAware：注入 EmbeddedValueResolver（Spring EL解析器），一般用于参数解析；
- ApplicationContextAware（ResourceLoader、ApplicationEventPublisherAware、MessageSourceAware）：注入 ApplicationContext 容器本身。
//org/springframework/context/support/ApplicationContextAwareProcessor.java
private void invokeAwareInterfaces(Object bean) {
if (bean instanceof EnvironmentAware) {
((EnvironmentAware) bean).setEnvironment(this.applicationContext.getEnvironment());
}
if (bean instanceof EmbeddedValueResolverAware) {
((EmbeddedValueResolverAware) bean).setEmbeddedValueResolver(this.embeddedValueResolver);
}
if (bean instanceof ResourceLoaderAware) {
((ResourceLoaderAware) bean).setResourceLoader(this.applicationContext);
}
if (bean instanceof ApplicationEventPublisherAware) {
((ApplicationEventPublisherAware) bean).setApplicationEventPublisher(this.applicationContext);
}
if (bean instanceof MessageSourceAware) {
((MessageSourceAware) bean).setMessageSource(this.applicationContext);
}
if (bean instanceof ApplicationContextAware) {
((ApplicationContextAware) bean).setApplicationContext(this.applicationContext);
}
}
复制代码参考文献
beanPostProcessor 和beanFactoryPostProcessor
spring bean 生命周期
近期评论
